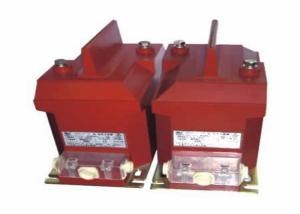

JDZ10-12 JDZ10-12V JDZF10-12 JDZF10-12V 12kV Indoor Single-phase Epoxy Resin Type Voltage Transformer

Name: JDZ1012 JDZ1012V JDZF1012 JDZF1012V 12kV Indoor Singlephase Epoxy Resin Type Voltage Transformer
Brand: Chuangyin
Price: 1 USD

Brand Name : Chuangyin

Model Number : JDZ10-12 JDZ10-12V JDZF10-12 JDZF10-12V

Certification : IEEE/ANSI,KEMA,CE

Place of Origin : Available

MOQ : 1set

Price : negotiable

Supply Ability : 36,000,000 pcs per year

Packaging Details : Plywood

Type : Epoxy Resin

Rated Frequency : 50/60HZ

Highest Voltage : 12kV

Installation : indoor

Standsrd : IEEE/ANSI/IEC

Contact Now

JDZ10-12 JDZ10-12V JDZF10-12 JDZF10-12V 12kV Indoor Single-phase Epoxy Resin Type Voltage Transformer

Description

Epoxy resin casting and fully enclosed construction, is used indoor for measuring current, electric energy and protective relaying in the electric system with the frequency 50Hz or 60Hz and highest voltage for equipment 7.2 /12kV. Be suitable for three phase V connnection.

Technical Data

Installation Site: indoor
Rated Frequency: 50/60Hz
Load power factor: cosΦ=0.8 (lagging)
Technical standard accords with IEC 60044-2(IEC 61869-1&3)

Specification:

Type	Rated primary Voltage (kV)	Rated secondary Voltage (kV)	Accuracy classes combination	Rated output (VA)	Thermal limiting Output (VA)	Rated Insulation level (kV)
JDZ10-12(V) JDZF10-12(V)	11	0.11	0.2	15	400	12/28/75
			0.5	50
			1	80
		0.11/0.11	0.2/0.2	10/10	200/200
			0.2/0.5	15/30
		0.11/0.22	0.2/6P	15/500	500
			0.5/6P	30/500

Note: Upon request we are glad to offer transformers according to other technical specs.

Outline drawing
