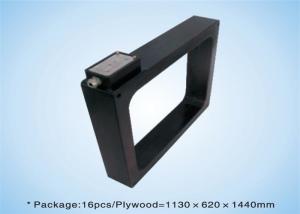

GIS Instrument Zero Sequence CT / 5 Amp Current Transformer LZXW-0.72

Name: GIS Instrument Zero Sequence CT 5 Amp Current Transformer LZXW072
Brand: Chuangyin
Price: 1 USD

Brand Name : Chuangyin

Model Number : LZXW-0.72

Certification : IEEE / ANSI

Place of Origin : China

MOQ : 1

Price : negotiable

Payment Terms : T/T, L/C, Western Union, MoneyGram, D/P, D/A,

Supply Ability : 1000pcs/week

Packaging Details : Plywood

use : for GIS

Technical Standard : IEC 60044-1/ IEC 61869-1&2

Features : adopts newly high permeability core with high mesuring accuracy

Installation site : Indoor

Rated Frequency : 50/60HZ

New Weight : 29KG/pcs

Contact Now

LZXW-0.72 LZXW Instrument Current Transformer, Zero Sequence Current Transformer

Description:

Epoxy resin vacuum casting,they have good electrical mechanism performance property,damp proof and dirt proof ability. The shape is beautiful and it is easy to be installed.

Technical Data

1, Rated secondary current: 5A,1A

2, Power frequency withstand voltage: 3kV

3, Rated frequency: 50/60Hz

4, Installation site: Indoor

5, Technical standard: IEC 60044-1(IEC 61869-1&2)

Specification

Type	Ratio(A)	Accuracy class	Rated output(VA)
LZXW3-0.72/370450 LZXW2-0.72/400500	50/1	10P10	1
	50/5	10P10	0.5
	100/1	10P10	2
	100/5	10P10	1
	150/1	10P10	2
	300/5	10P10	1
	500/1	5P10	10
	600/5	10P10	5
	800/5	0.5	15

Note: Upon request we are glad to offer transformers according to other technical specs.

Outline Drawing:

GIS Instrument Zero Sequence CT / 5 Amp Current Transformer LZXW-0.72
