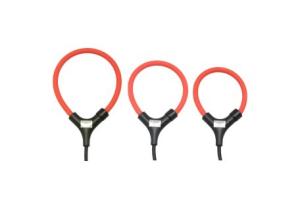

Clamp-on Flexible Rogowski Coil CT
CY-RCT01 (50~300A)
Rogowski coil Output 85mV/@1KA Without integrator
General data:
.Ambient operating temp:-20……+70℃
.Ambient storage temp.:-25……+75℃
.Standard Safety:IEC 61010-1:2001,600V CATⅢ
Specification: unit :mm
| Dimensions | CY-RCT01-55 CY-RCTA01-55 | CY-RCT01-80 CY-RCTA01-80 | CY-RCT01-105 CY-RCTA01-105 |
| Window A | 55 | 80 | 105 |
| Coil DB B | 68.5 | 93.5 | 118.5 |
| Coil Length C | 200 | 300 | 380 |
| Output connection | UL2586-ESB2*24AWG L=150cm(as required) Coax terminated with safety male BNC connector L =300cm(as required) UL2586-esb2*24AWG L=150cm(as required)with integrator |
Electrial Parameter:
| Type Data | CY-RCT01-55 | CY-RCT01-80 | CY-RCT01-105 | CY-RCTA01-55 | CY-RCTA01-80 | CY-RCTA01-105 |
| Current Range | 10A-10KA | 10A-6000A |
| Frequency | 25Hz-20kHz | 45Hz-600Hz |
| Output Voltage | Rated curent | 500A | 1000A | 2000A | 250A,500A,800A,1000A | 1000A,1500A,2000A,2500A | 1000A, |
| 2000A, |
| 2500A |
| 3000A |
| 50Hz | 50Mv AC | 100mv AC | 200mv AC | 333mV |
| 1mV/A |
| Max output | / | 3.0V AC max |
| Accuracy | ＜1%＠25ºC(45-65Hz) | ＜1%@25ºC(45-65Hz) |
| Phase error | ＜60＠25ºC(45-65Hz) | ＜60@25ºC(45-65Hz) |
| Output sensitivity | ±2%Max (No Calibration) | 1% |
| ±0.5%@25ºC(with Calibration |
| Linearity error | ±0.2%(10%-100%IIn) | ±0.2% |
| Position Sensitivity | ±0.2% | ±2% |
| External Influence | ±0.2% Max | ±1.5%Max |
| Power Supply | / | 10-30VDC,30m A MAX. |
Remarks:
Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.
